HP C7000 Interconnect Bay Mapping

Here I address the most common query people have when using HP C7000 chassis, namely how do the bay mappings work.

Half Height Blades

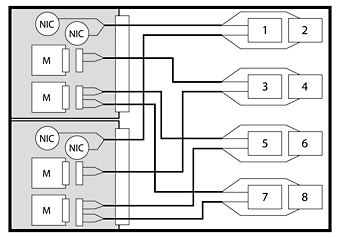

HP supply blades which occupy single or double slots, the single height blades map in the following way.

Device	Interconnect Bay Mapping
OnBoard NIC1	Bay 1
OnBoard NIC2	Bay 2
Mezz1 HBA1	Bay 3
Mezz1 HBA2	Bay 4
Mezz2 NIC1	Bay 5
Mezz2 NIC2	Bay 6
Mezz2 NIC3	Bay 7
Mezz2 NIC4	Bay 8

Full Height Blades

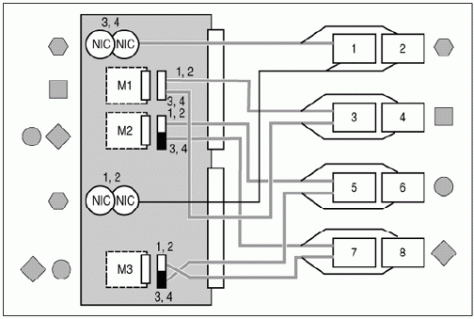

For dual height blade server such as BL680c the mappings work the same way although each server has two mappings to each for example slot one maps to ports one and nine in each interconnect bay as opposed to just bay port one if in slot one and port nine if in slot nine.
